Using point clouds as intelligent models in engineering systems

Efficient use of ACTUAL data for digital twins

Reduce planning effort

Accelerate planning process

Avoid error costs in construction

pointo – Efficient further processing of point clouds

The challenge

Today, 3D scanners enable a largely problem- free recording of the real ACTUAL situation in the factory. However, the large data volumes of the detailed factory scans make further use difficult:

Import into planning systems is often not possible
Point clouds can often only be visualized in engineering systems, but not further processed.
A structure tree or hierarchy is not available
Simulations cannot be carried out

The solution

pointo supports you in the further processing of. your scan data. Through an intelligent conversion of the point clouds, factory data can. be imported efficiently, as models, into engineering systems. This enables a better planning basis for the digital factory:

Intelligent, automated triangulation of point clouds (mesh generation).
Conversion of point clouds into the 3D data. format JT
Intelligent segmentation of converted point clouds as 3D model with structure tree
Checking of the as-built to as-designed state

pointo software-gallery

Tessellated point cloud with structure tree

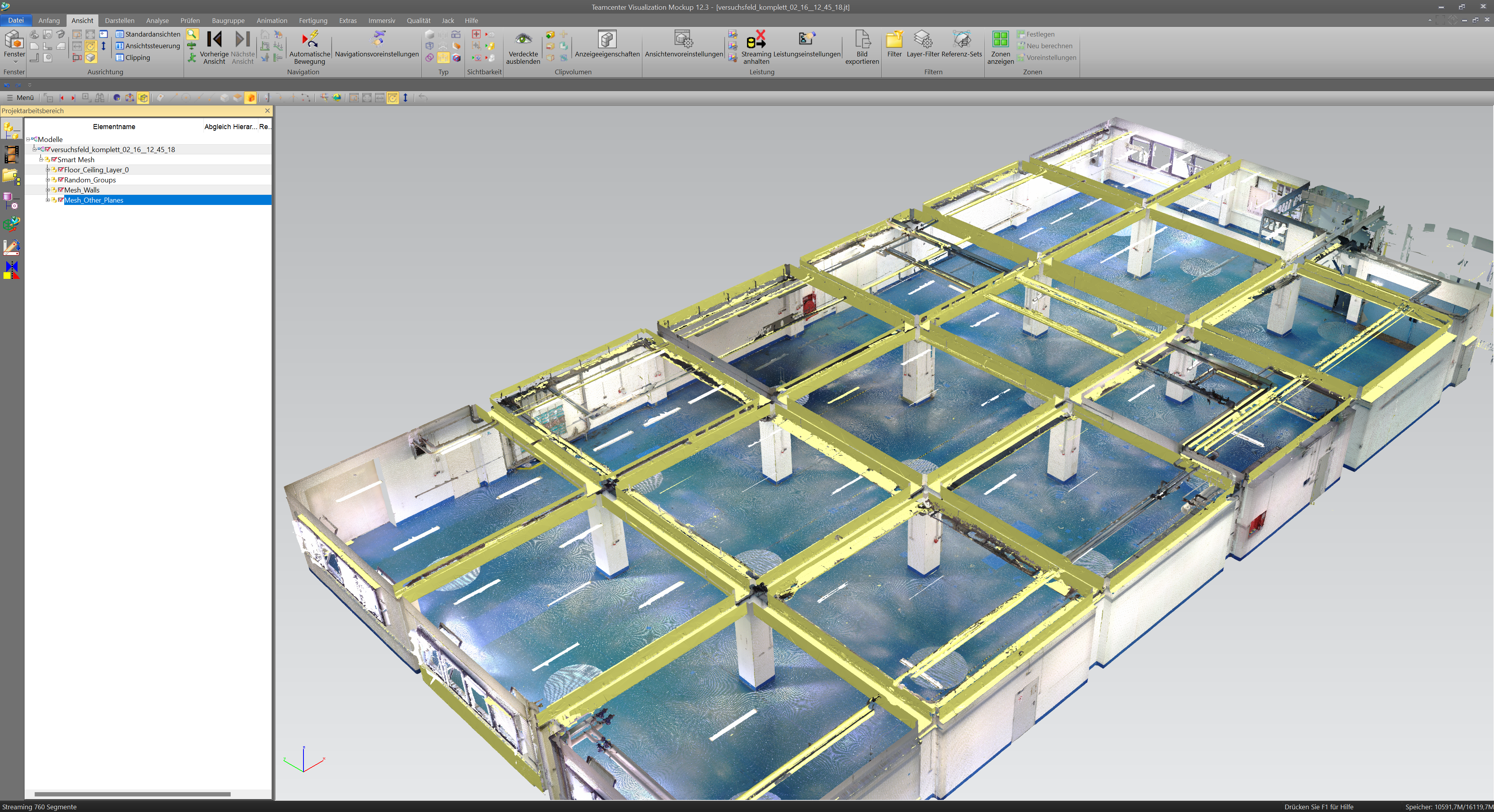

Selected surfaces in the generated model

Hidden surfaces in the generated model

pointo point cloud software

The planning solution for logistics, manufacturing and construction documentation

Point cloud conversion and model generation

Automated conversion of point clouds to JT as Windows- Linux and Cloud application
Identification of ceilings, walls, floors, pipes etc.
Automated building of a model structure
Further use of the converted data in engineering systems

Learn more from our product experts!

We look forward to discussing your use cases with you and presenting our solutions!
